PENTHOUSE 49 - Type : Three bedroom, triple aspect penthouse with terrace

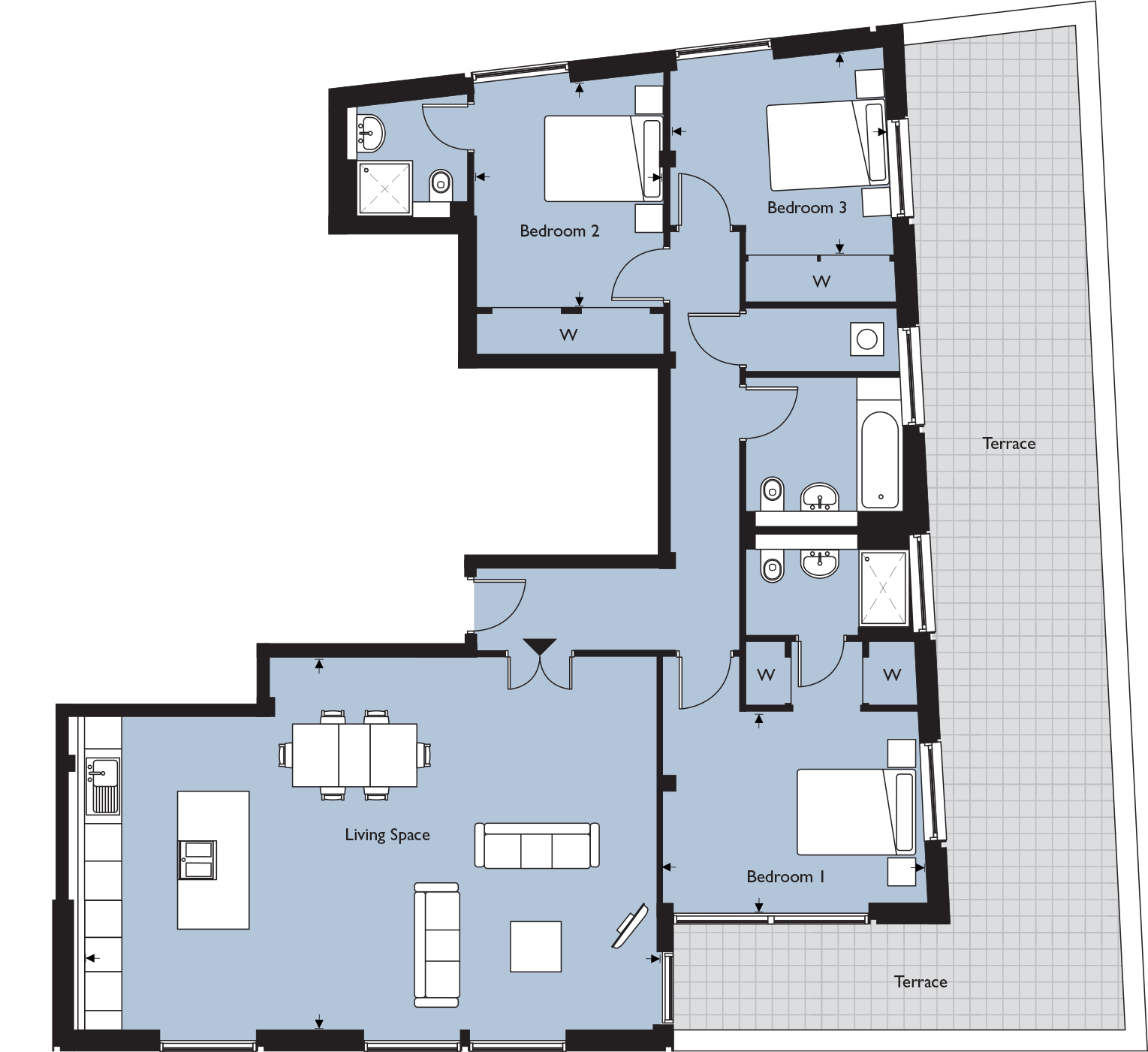

FLOOR PLANS
PLOT LOCATIONS

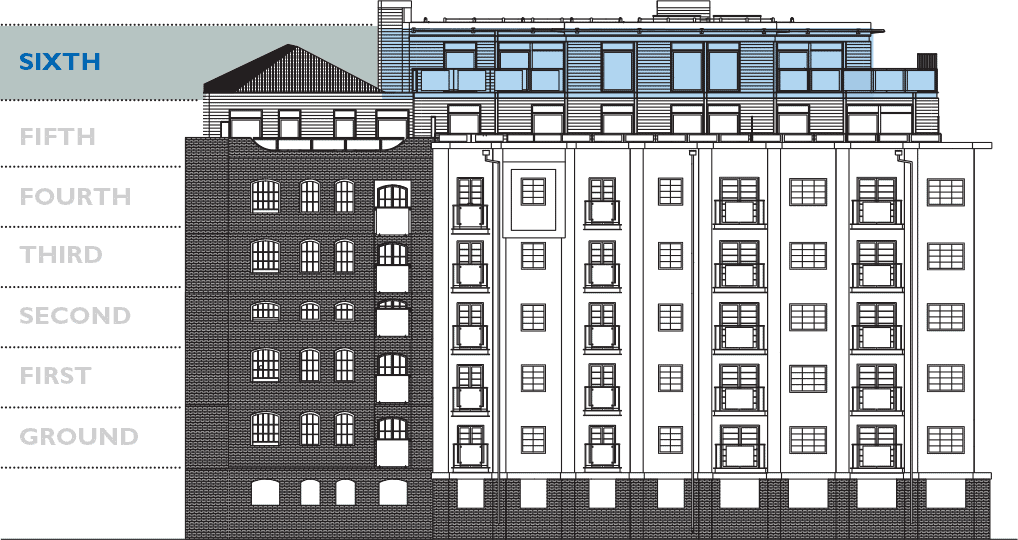

ELEVATION

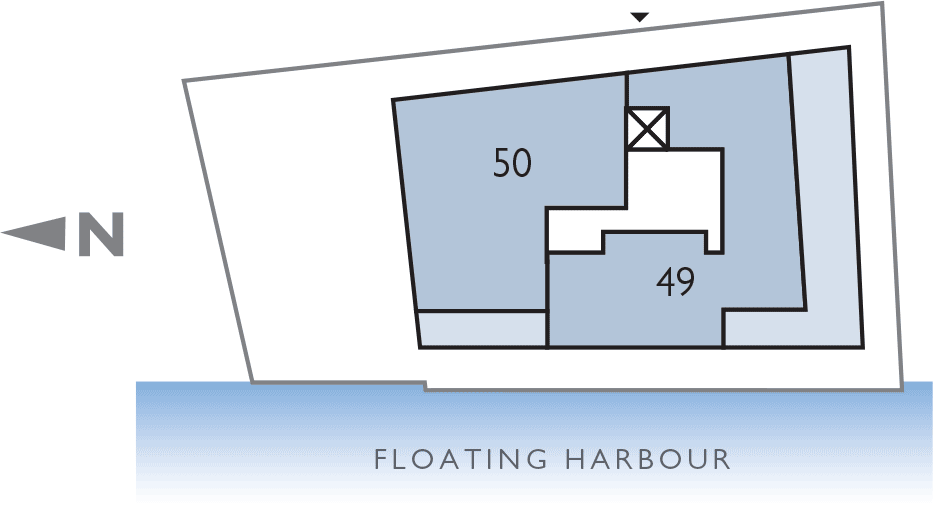

SITEPLAN
DIMENSIONS
Living Space
6.06m × 9.50m
19’ 10” × 31’ 2”
Bedroom 1
3.34m × 4.23m
10’ 11” × 13’ 10”
Bedroom 2
3.64m × 3.05m
11’ 11” × 10’ 0”
Bedroom 3
3.28m × 3.49m
10’ 9” × 11’ 5”
Total Size
130.32 m2
1402 sq.ft.
Room dimensions taken from this point
Boiler Cupboard
S
Store / Washer/dryer
W
Wardrobe
Cast iron columns
Concrete columns
These preliminary plans are intended only as a guide and may have changed during
construction. Prospective purchasers should not rely on this information but must get their
solicitor to check the plans and specification attached to their contract. Not to scale.
